The Flying Squirrel Wireless Assessment Tool Suite

To enhance the security posture of DoD networks, Flying Squirrel provides real-time wireless discovery, integrated visualization and mapping, and post-hoc analysis capabilities. These capabilities are provided in the Flying Squirrel Wireless Assessment Tool Suite via the Flying Squirrel, MeerCAT-FS, Caribou and Ubertooth One components. For a complete description of the Flying Squirrel Suite of technologies see the bullet link list below and visit the Naval Research Laboratory (NRL) Center for High Assurance Computing Systems (CHACS) directly.



  1. Flying Squirrel Suite Software
  2. MeerCAT-FS Software
  3. Caribou Inertial Measurement Sensor Hardware
  4. Ubertooth™ One Bluetooth Adapter Hardware
  5. FAQs



Flying Squirrel Suite Official Website
Download free software from NRL
Flying Squirrel Suite Brochure

Flying Squirrel Wireless Discovery/Mapping Application

FS is a Government off-the-shelf (GOTS) software application developed by the U.S. Naval Research Laboratory to provide real-time discovery, analysis, and mapping of IEEE 802.11a/b/g/n wireless networks.

For a complete description of the Flying Squirrel Suite of technologies, please visit the Navel Research Laboratory (NRL) Center for High Assurance Computing Systems (CHACS) website.

Key Features

Wireless Discovery:

  • Easy to use graphical interface with both Windows and Linux
  • Supports 802.11a/b/g/n
  • Real-time protocol analysis
  • Cloaked network discovery
  • Arbitrarily filter, search, and sort networks
  • Statistical analysis of captured network traffic
  • Customizable report generation



Wireless Mapping:

  • Real-time signal strength interpolation
  • Real-time drive path and logical network visualization
  • Integrated Geographic Information System (GIS)
  • Google Earth export
  • Filter netwroks by geographic area
  • Blueprint overlay

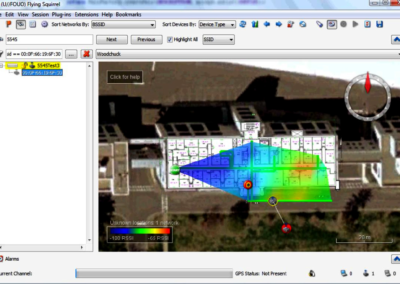

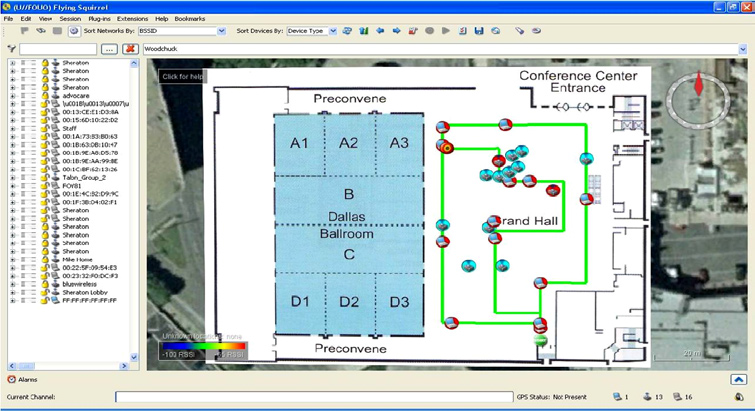

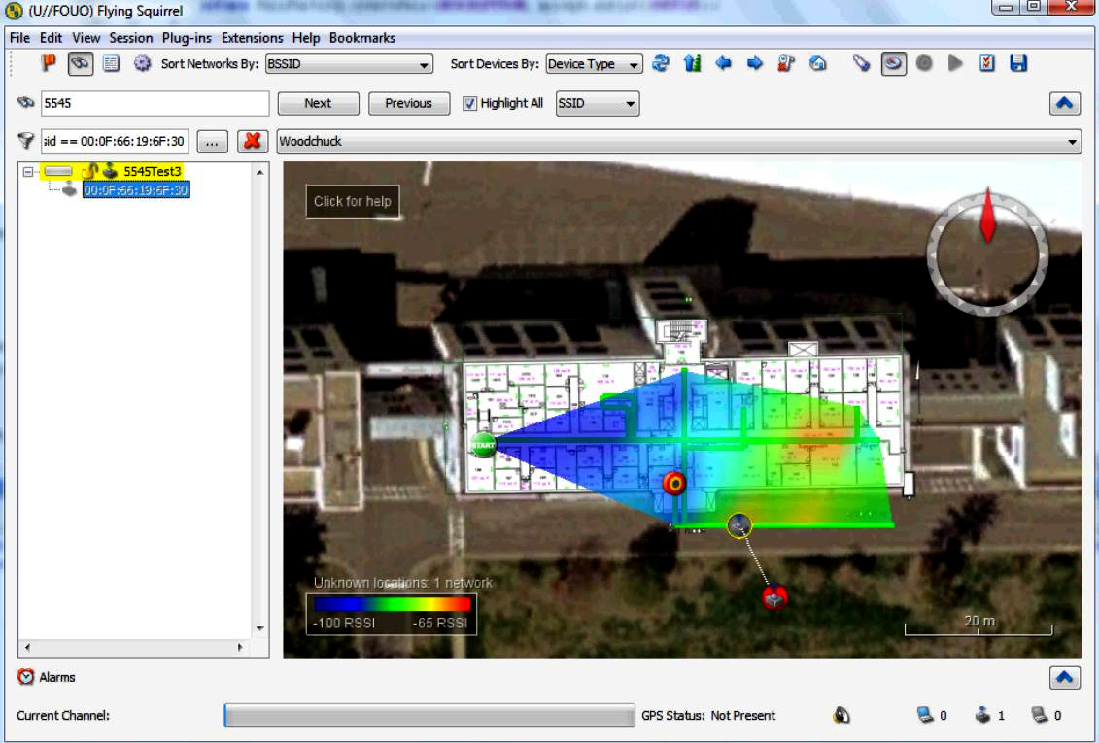

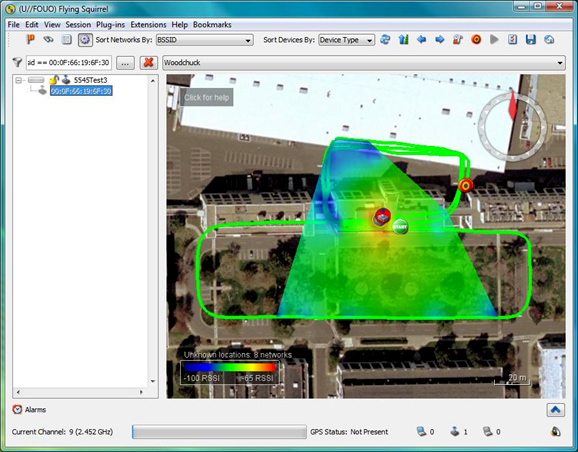

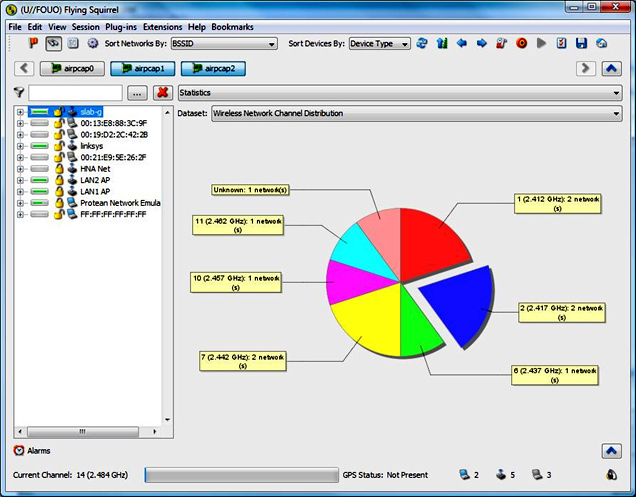

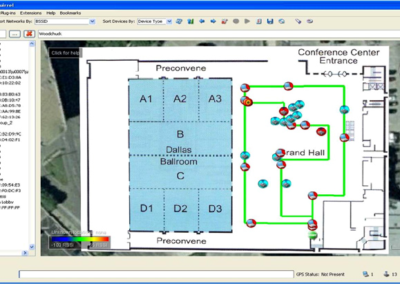

Flying Squirrel Suite Software Images

MeerCAT-FS

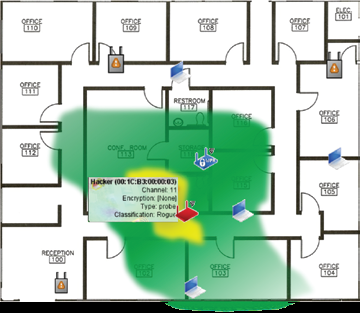

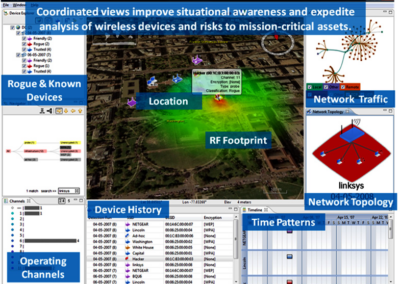

MeerCAT-FS is a visual analytics tool designed to help locate wireless assets and networks, and assess the wireless cyber risks to your organization. Initially developed for and in close collaboration with the U.S. Department of Defense, MeerCAT-FS integrates data from the Flying Squirrel wireless discovery security application to provide a unified view of detected wireless devices, their vulnerabilities and threats. It is used to compare and analyze multiple Flying Squirrel wireless discovery runs. Post-hoc analysis can be performed by utilizing its key features, such as time trend analysis, wireless topology discovery, profile filtering, and communication pattern analysis, turning Flying Squirrel’s wealth of data into meaningful, actionable information.

Key Features
  • Visual correlation and representation of wireless discovery data
  • Big picture overview, filter, and drill-down for details
  • Geographic visualization of location and movement of wireless devices
  • Visual tracks of threats moving inside a building
  • Historical analysis of wireless risks and remediation
  • Identification of same threat recurring across locations and time
  • Profiles of suspicious behavior patterns
  • Built-in reporting
  • Works on standard PC or laptop

Caribou Inertial Measurement Sensor Hardware

To accurately map both known and unknown IEEE 802.11 transmitters in Flying Squirrel, location awareness is essential. In outdoor situations, GPS easily provides this location information. In indoor situations however, a reliable GPS signal is not likely to be available, thus requiring the user to manually enter position information for collected data points, which is time consuming and limits the accuracy of the transmitter map.

To provide indoor tracking capabilities for Flying Squirrel, NRL developed a GOTS inertial measurement sensor called Caribou that uses inertial, magnetic and barometric sensors to provide position information in the absence of a GPS signal. To eliminate the need for two separate devices, Caribou also provides an integrated GPS device for outdoor tracking. Caribou integrates seamlessly with Flying Squirrel, requiring the operator to simply clip the unit to their belt, plug in a USB cable, and for indoor application, pick a starting location.

Key Features
  • Inertial, magnetic, and barometric sensors for indoor tracking
  • Built-in GPS for outdoor tracking
  • Ruggedized enclosure – 3˝ x 1.25˝ x 2.5˝
  • Tilt compensated compass
  • USB powered, no need for batteries
  • Easily mounts to an operator’s belt
  • Sensor data is transferred to Flying Squirrel via USB
  • Blueprint overlay into Flying Squirrel
Caribou Unit Images

Ubertooth™ One Bluetooth Adapter Hardware

Based on the powerful LPC175x ARM Cortex-M3 microcontroller with full-speed USB 2.0, the Ubertooth One is a great way to develop custom Class 1 comparable Bluetooth devices. One thing that sets the Ubertooth apart from other Bluetooth development platforms is that it’s capable of not only sending and receiving 2.4 GHz signals, but can also operate in monitor mode, monitoring Bluetooth traffic in real-time. Ubertooth One is a development tool. It has not been tested for compliance with regulations governing transmission and compliance and reception of radio signals.

Key Features
  • 2.4 GHz Transmit and Receive
  • Transmit power and receive sensitivity comparable to a Class 1 Bluetooth device
  • Standard Cortex Debug Connector (10-pin 50-mil JTAG)
  • In-System Programming (ISP) Serial Connector
  • Expansion connector intended for inter-Ubertooth™ communication or other future uses
  • 2.4 GHz Duck Antenna Included
Ubertooth One Unit Image

FAQs

What collaboration and reporting tools are available in the Flying Squirrel Suite?

MeerCAT provides support for collaboration and reporting, making it easier to share, compare and report information. The Report Generator creates quick and accurate reports using an advanced template-driven report building technology and drag-n-drop functions to easily and seamlessly incorporate important visualizations into security incident assessment reports. This technology significantly reduces human error in reporting, streamlines report generation and abbreviates the time to complete them.

How do I get the Flying Squirrel application?

Please visit the NRL website directly.

What are the system requirements to support Flying Squirrel Suite?

Please see the system requirements delineated on the NRL Center for High Assurance Computer Systems (CHACS) website.

How do I purchase/become approved to get a Caribou unit?
The Caribou device has been developed by the Naval Research Lab.  Sale of Caribou is restricted to United States Government personnel and organizations that are purchasing Caribou on behalf of a U.S. Government organization.  Before purchasing Caribou, you must be authorized by NRL to do so.  Authorization is straightforward, however you will need to provide specific information to Applied Visions Inc. either by calling us at (631) 759-3988 or through the use of the Contact Us form (https://fs.securedecisions.com/contact) so that we may obtain the government approval you need to purchase Caribou.

If you are a U.S. government employee, you will need to provide the following information:
    • Name, phone number, government email address (must be a .mil or .gov email address)

If you are a contractor, or organization buying on behalf of a government organization:
    • Name, phone number, email address, government contract number, government contact name, email address, phone number and shipping address for the government organization you are representing

For all other inquiries please call us to discuss further at (631) 759-3988.

Once we gain approval for you, we will send an email notifying you that you are authorized to purchase Caribou.  From there, you can purchase the Caribou you need directly from the invoice we send to you.
What needed to make a purchase?
  • Payment:
    We accept Credit Card payments through Visa and MasterCard. We also accept Government Purchase Orders.



  • Taxes:
    Prices do not include sales tax where applicable. Federal government and non-New York State resident purchasers are exempt from state and local sales taxes. Purchasers residing in New York State must provide a copy of your tax exemption certificate to be exempted from payment of sales tax. If you purchase from the Flying Squirrel Online shop, you can upload your tax exempt certificate directly to us.



  • Flashing and Casings:
    Ubertooth™ One devices are delivered with software pre-loaded. Custom plastic cases are provided for each device ordered.



  • Order Lead Time:
    Caribou and Ubertooth™ One devices are typically shipped within 48 hours from time of purchase. If you are purchasing a large number of devices, depending on inventory, we may provide incremental shipments to you.
    Lead time for out-of-stock Ubertooth™ One devices is 2-3 weeks; Caribou may be up to 8 weeks.
